Garage Door Hi Lift with New Opener Liftmaster 98022.

One of our major projects took place in June 2025 near Wheeling, Illinois. We frequently perform garage door repair near Wheeling, as our main office is located nearby—in Arlington Heights. Many clients from the area turn to us for both residential and commercial garage door repair and installation.

Need a local garage door service in Wheeling, IL? Our team of Wheeling garage door repair specialists near you is ready to help.

One of our clients from Wheeling owns a residential house with two garage doors. Both doors were white Clopay Model 4050, with identical openings and standard 15-inch radius horizontal tracks. These are classic doors commonly found in single-family homes.

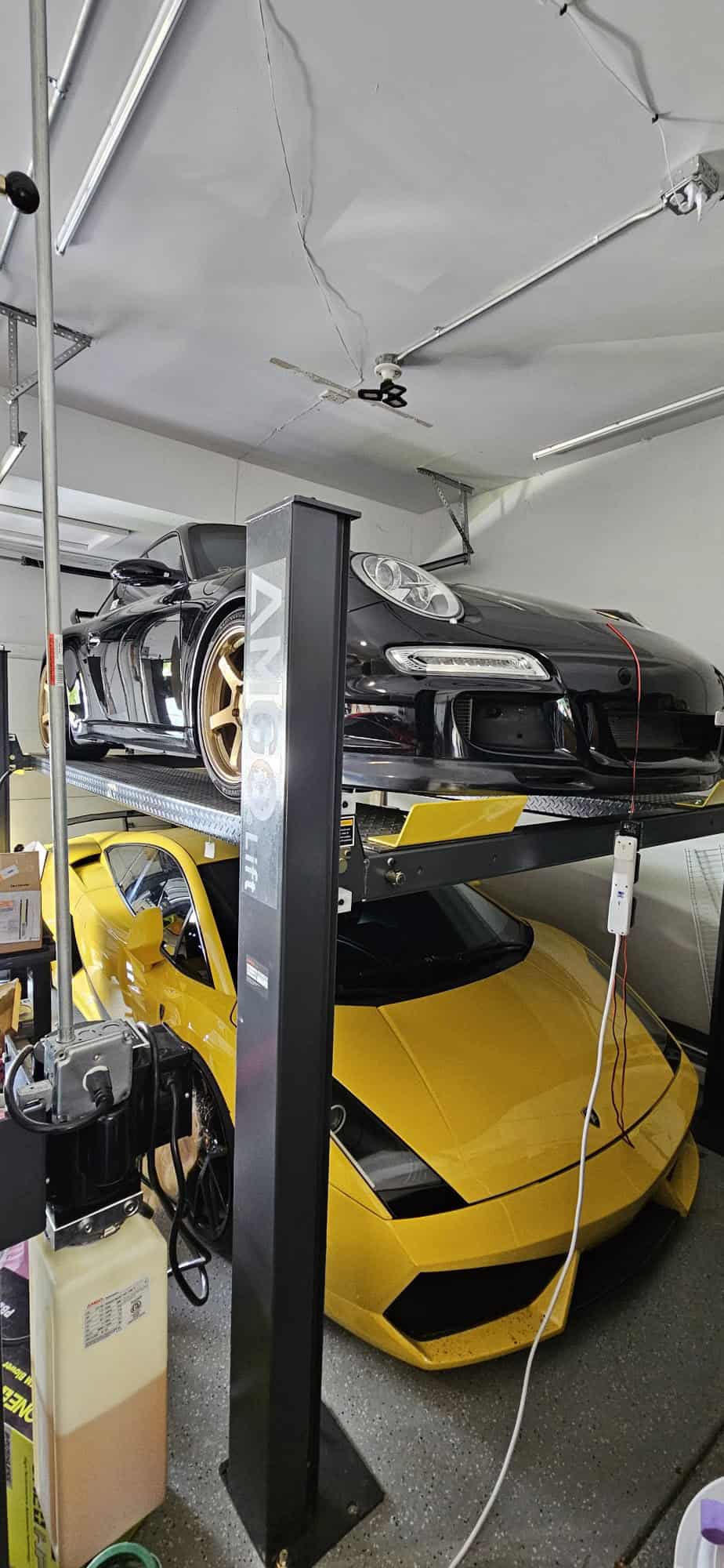

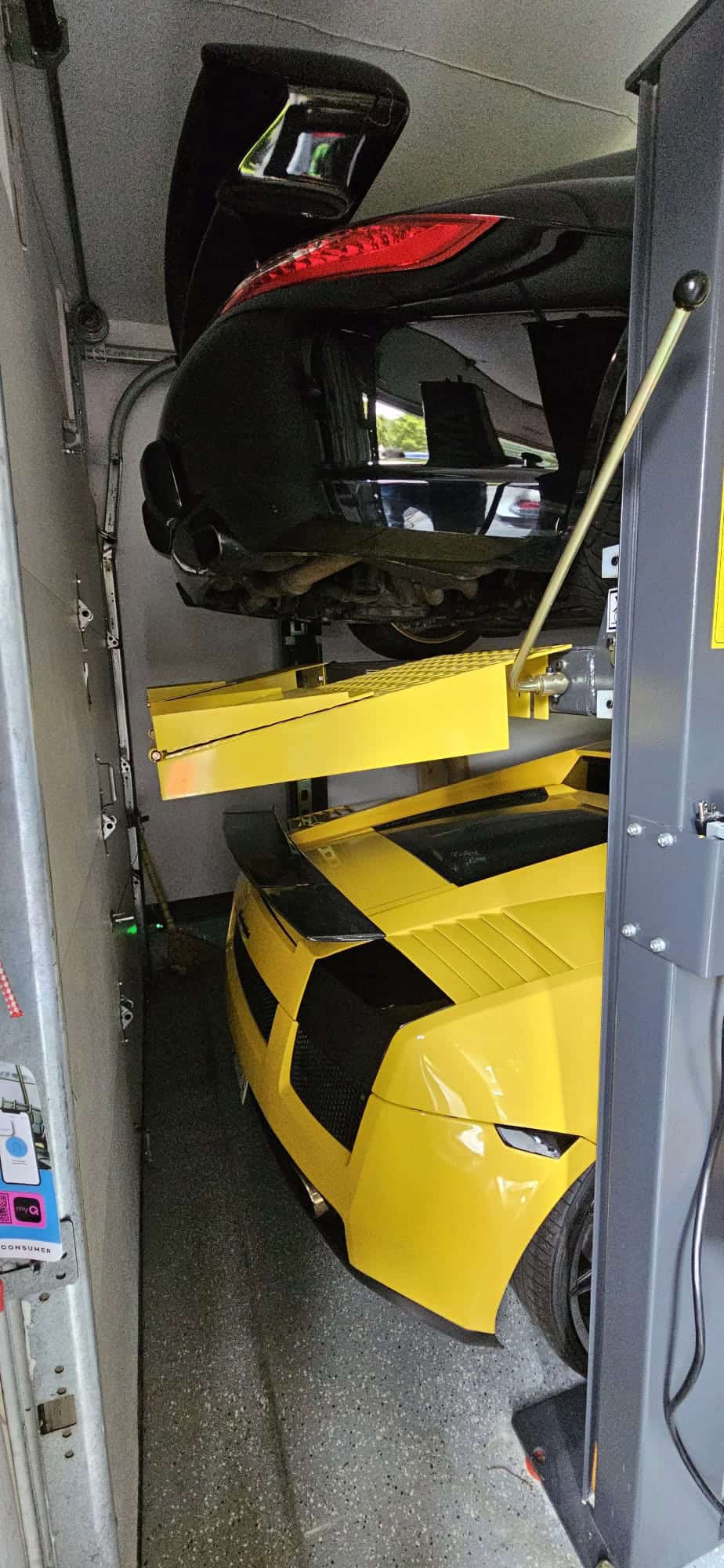

A key advantage of this property was the high ceiling. The client contacted us with a request to modify his garage door system to accommodate a high-lift track system. He planned to install a vehicle lift to transform his two-car garage into a four-car garage. (We can also share the link to this lift for other interested clients.)

He asked us to extend the vertical lift clearance, and we agreed to take on the project.

Key Steps for Installing a High-Lift System and New LiftMaster 98022 Jackshaft Opener Near Wheeling, Illinois

We broke down the work into several stages:

1. System Planning

We measured and determined the exact high-lift track configuration needed for his setup.

2. Ordering Parts

We ordered the necessary components, including new vertical tracks, high-lift drums, longer cables, and new torsion springs. All other reusable hardware was retained.

3. Installing a New Opener

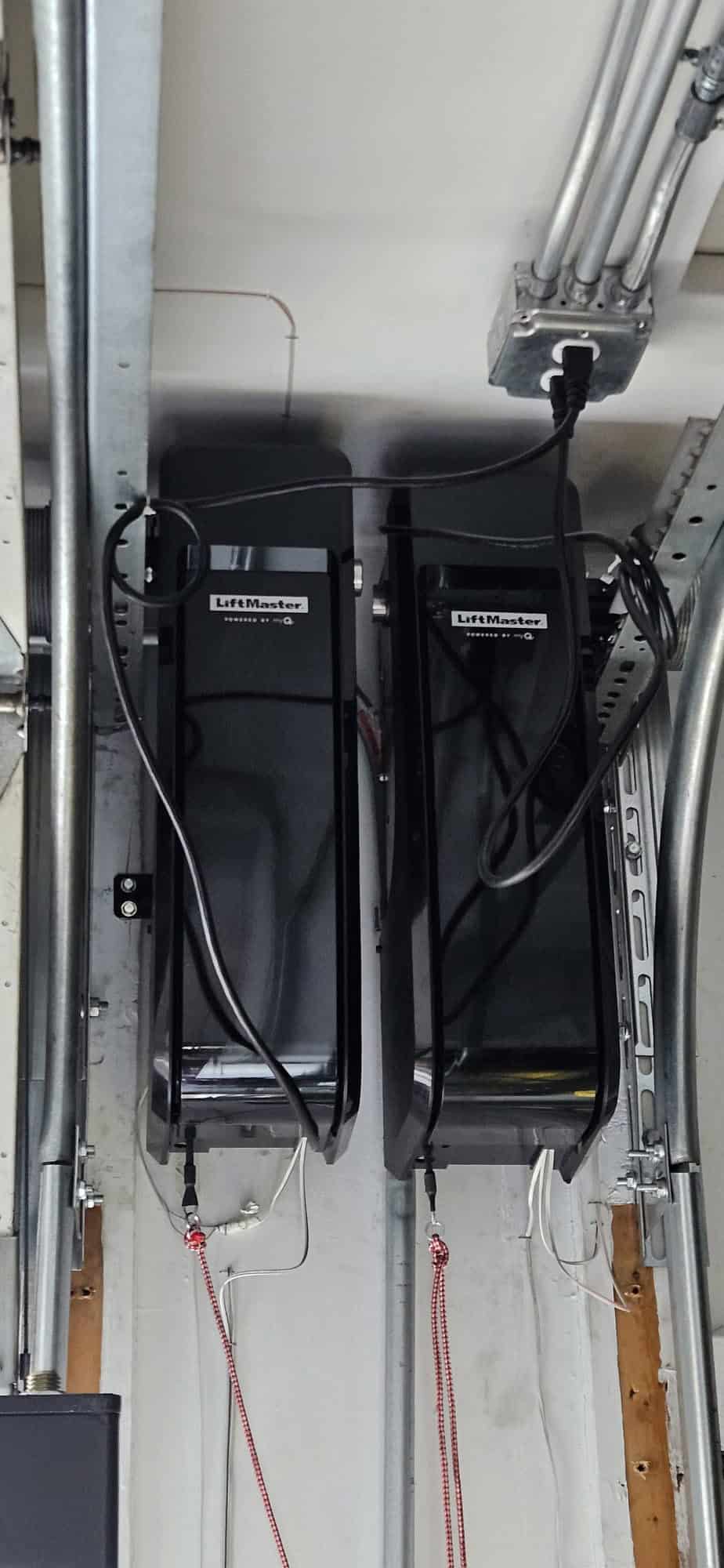

We upgraded the opener to a LiftMaster 98022 Jackshaft, a modern side-mount model ideal for high-lift residential garage doors.

4. Dismantling the Old Setup

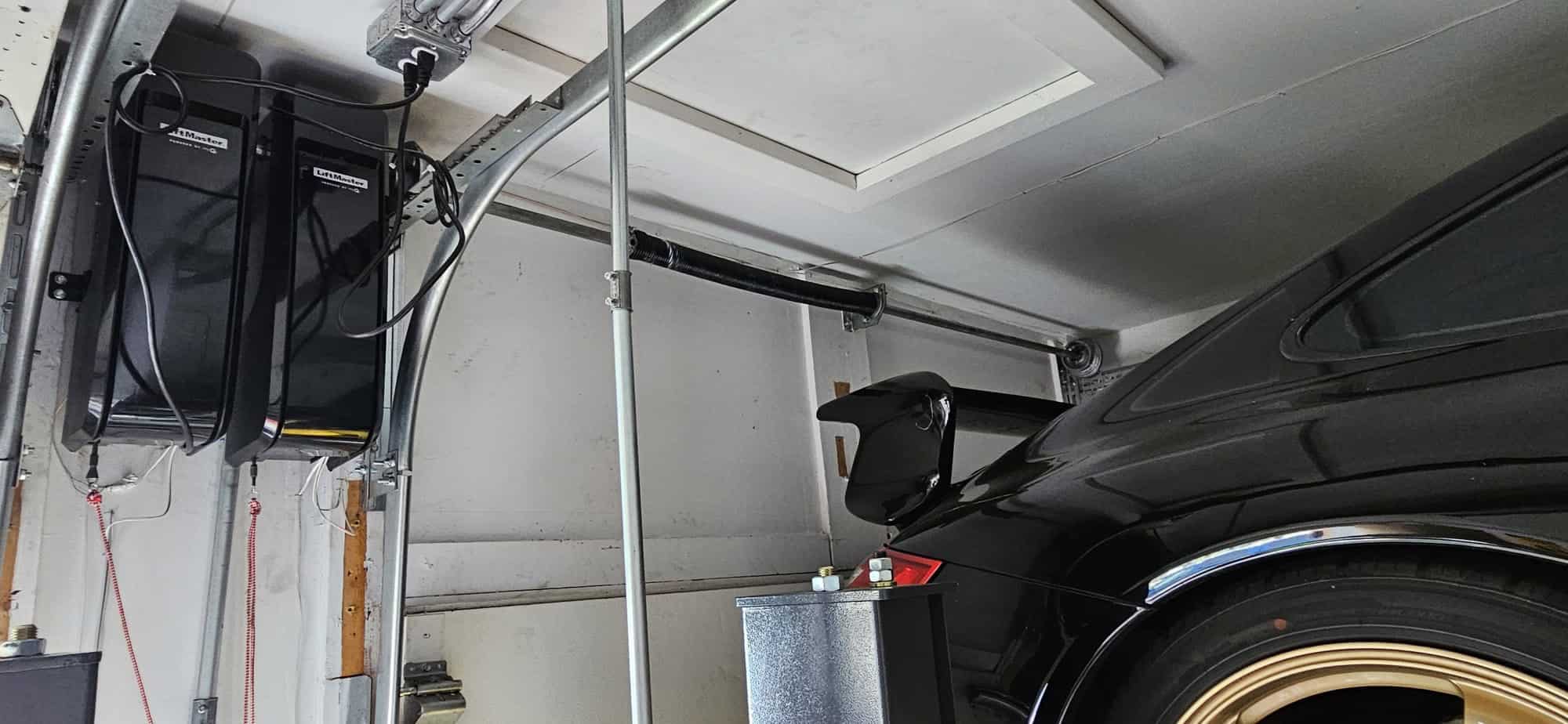

We removed the existing horizontal setup and added a 24-foot high-lift track to elevate the door closer to the ceiling.

5. Track Integration

We connected the new vertical and horizontal tracks, ensuring they were aligned correctly.

6. Spring & Cable Installation

We installed new springs, high-lift drums, and longer cables.

Pro tip: When converting to a high-lift system, standard cables and drums are not compatible. You need longer cables and special drums sized for high-lift (typically marked 6–8 inches in diameter).

Good balance is the secret to a successful door system—no matter where we work, whether in Arlington Heights, Wheeling, or elsewhere. Our goal is always to achieve a perfectly balanced door that opens and closes smoothly without jerks or jumps.

7. Final Opener Setup

We connected the LiftMaster 98022 to a new safety sensor, wall station, keypad, and manual lock.

8. Repeating the Second Door

We repeated the same upgrade process on the smaller second door.

9. Lighting Upgrade

We installed two new LED garage lamps, connecting them to the same outlet where the old LiftMaster opener was previously plugged in. That opener had served the homeowner well for over 20 years.

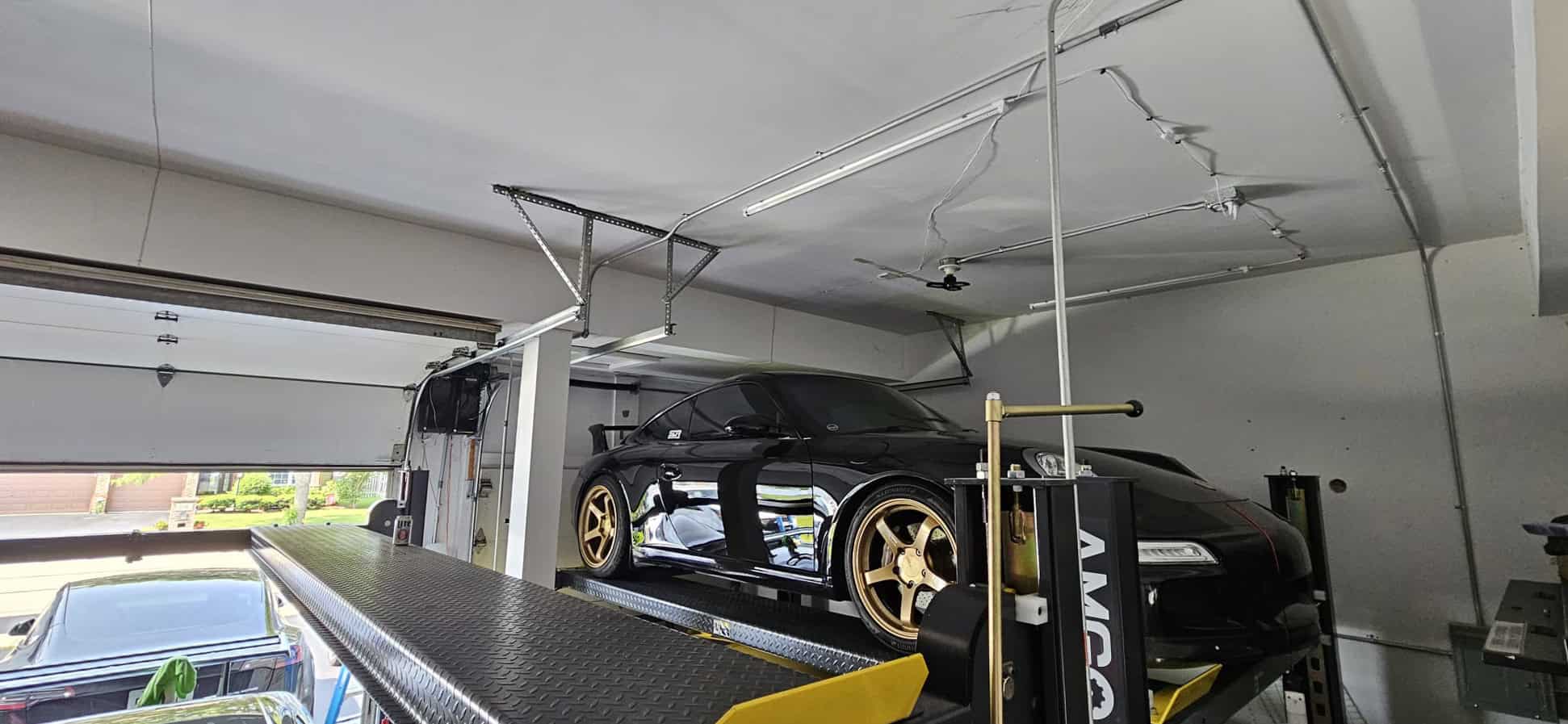

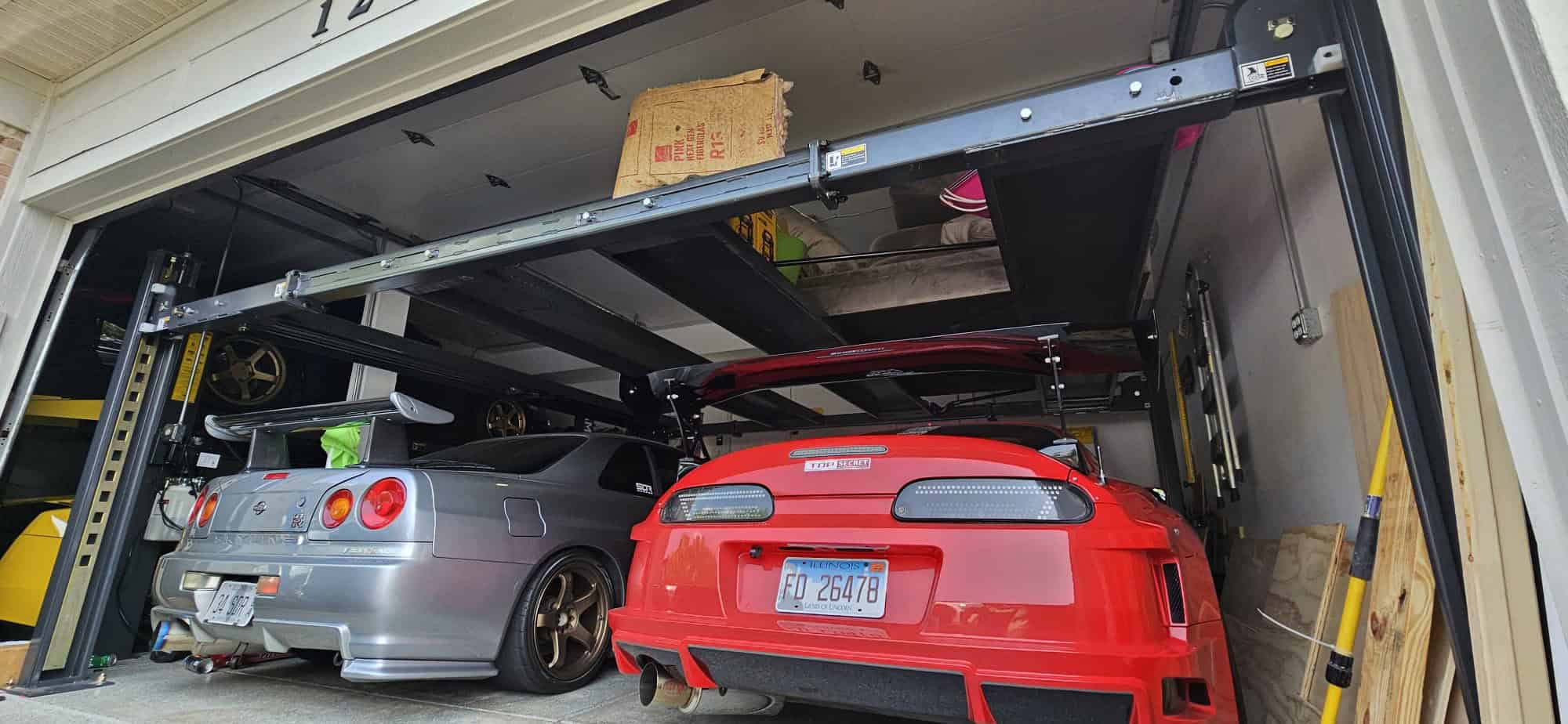

The results? The client was pleased. After installing the car lifts, the garage doors now rise almost flush with the ceiling—with just half an inch of clearance. The transformation is stunning.

This project involved a garage door repair in Wheeling, IL, done professionally, step-by-step, and tailored to the client’s specific needs.
