Firstline’s Unique Commercial Garage Door with Pass Door – What You Need to Know in Chicago
Introduction
Firstline Garage Door Repair is proud to present one of our most interesting projects completed in Chicago. Our regular client, a building contractor, approached us with the task of equipping the first floor of a five-story residential building with specialized garage doors. The project’s unique feature was the need to install garage doors with a built-in pass door (also known as a wicket door), which presented a non-standard engineering solution. What you need to know about this project is essential for all contractors facing a similar challenge. When you need to use the ground floor for vehicle access and space but you’re not allowed to create a separate entrance or emergency exit for people, you can follow the same approach and install a pass door directly into the garage door.
Project Description
Technical Requirements
The project involved creating parking for 35 vehicles on the first floor of a residential building. City inspection regulations prohibited installing a separate door at the rear of the building, creating the need to integrate pedestrian access through the garage doors. To solve this challenge, we needed to install two industrial garage door systems:
- First structure: 24 feet × 7.6 feet (standard garage door)
- Second structure: 18 feet × 10 feet (garage door with built-in pass door)
Special Requirements
The garage doors needed to meet the following requirements:
- Insulated construction to protect vehicles from cold Chicago winters
- Black color to match the overall building design
- Built-in pass door with key locking capability
- Integration with the building’s security system and automatic door opener
Technical Challenges and Solutions
Challenge #1: Non-standard Size Construction
When searching for a manufacturer to produce garage doors with a built-in pass door measuring 18×10 feet, we encountered our first difficulty. Most manufacturing companies don’t work with such non-standard sizes combined with integrated pass doors. After thorough market analysis, Firstline Garage Door Repair found a solution – manufacturer Ammar, who agreed to produce doors to our specifications.
Challenge #2: Extended Production Time
Ammar warned us that manufacturing such specific doors would take about three months due to high demand for this type of product across America. In Chicago winter conditions, this created additional complications for the construction project.
Challenge #3: Temporary Solution for the Winter Period
To ensure the facility could function during the winter months, our specialists installed temporary non-insulated doors in the 18×10 foot opening. The second opening (24×7.6 feet) was temporarily covered with plywood as decided by the contractor.
Challenge #4: Additional Production Delays
Unfortunately, the initial three-month timeframe was extended by the manufacturer for an additional month, which forced the contractor to adapt the schedule for installing fire systems and other engineering communications. In total, from the initial order to the final delivery of the doors, approximately 6 months passed (from November to the end of May).
Technical Solution

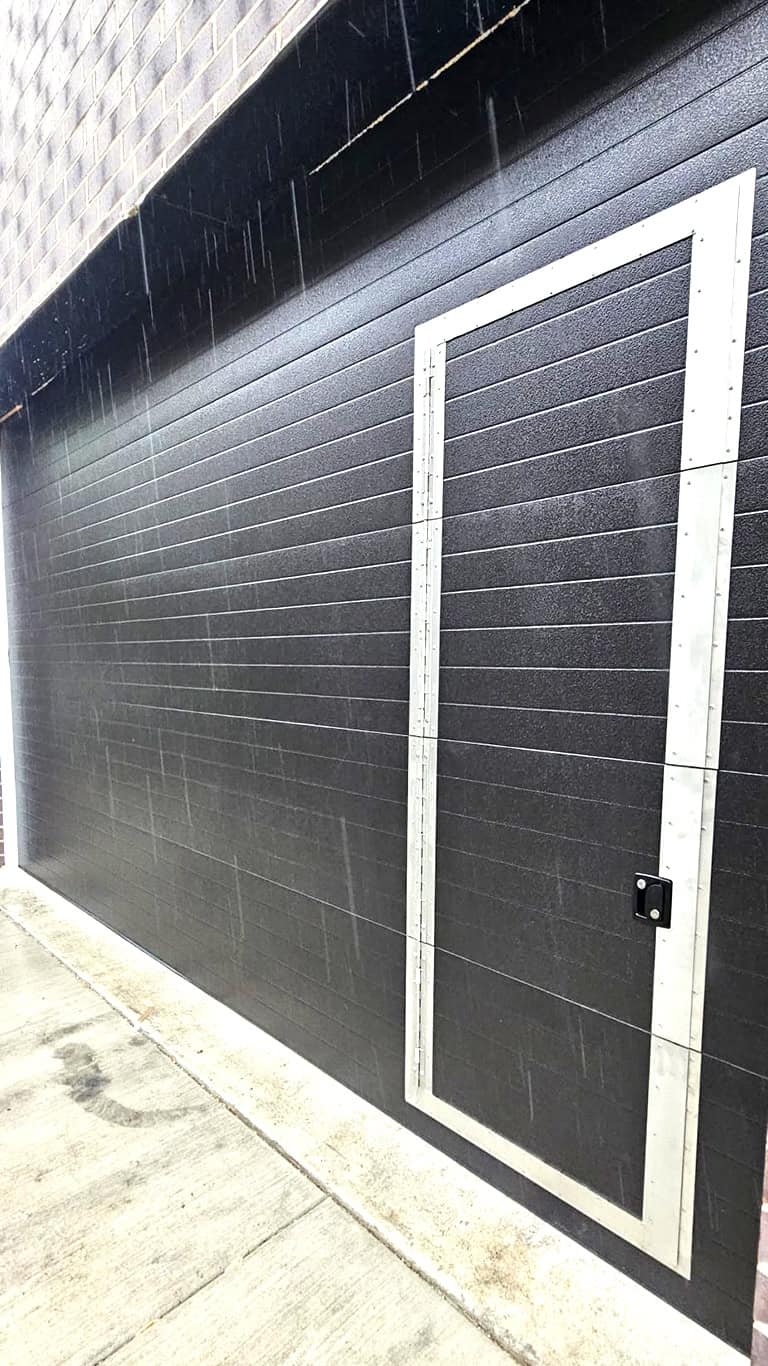

Pass Door Construction in Commercial Garage Doors
A built-in pass door (wicket door) is a functional element that allows people to enter and exit the building without needing to fully open the garage doors. For this project, we applied the following technical solutions:
- Specialized hinge system – each door section was equipped with separate hinges to ensure reliable operation of the pass door within the main structure
- Strut system – to ensure structural rigidity, three struts were installed, evenly distributed across the door area

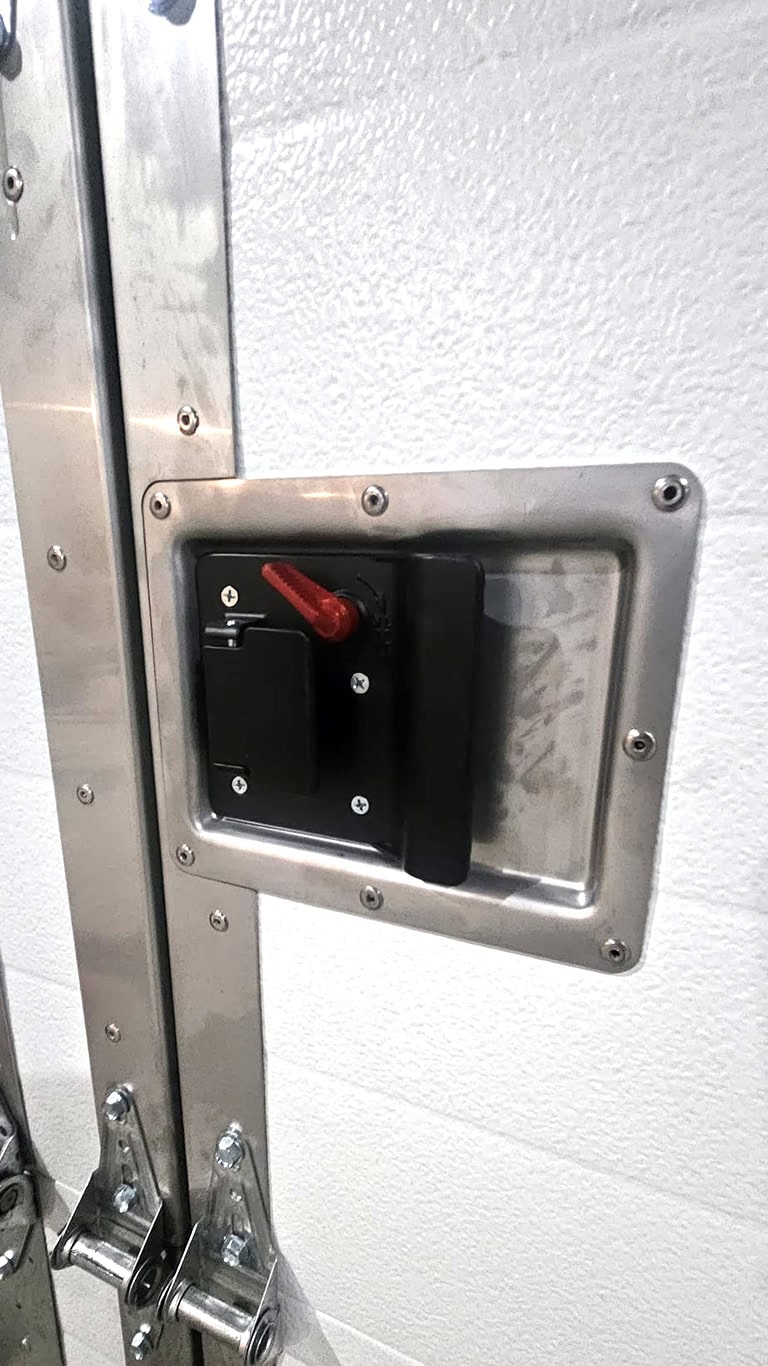

- Lock mechanism with handle and latch – the pass door is equipped with a convenient handle with a latch and key locking capability to ensure security
Safety System
One of the key elements of the project was integrating the pass door with the automatic garage door opening system. Special electronics were installed to block the operation of the automatic drive when the pass door is open. This solution prevents potential accidents and equipment damage if someone is exiting through the pass door when the main door is activated.
Project Results
Despite the manufacturing challenges and extended waiting periods, the Firstline Garage Door Repair team successfully completed the commercial garage door installation project with an integrated pass door. Features of the implemented solution include:
- Functionality – convenient entry/exit for personnel and residents without the need to open large doors
- Energy efficiency – reduced heat loss during winter months by using the pass door instead of fully opening the garage door
- Safety – integration with the automation system to prevent accidents
- Compliance – the solution fully satisfies city inspection requirements and client needs
Advantages of Using Garage Doors with Built-in Pass Doors
For Commercial Properties
- Improved energy efficiency – reduced heat loss when personnel enter/exit
- Ease of operation – no need to open the main door each time
- Extended service life of the main door mechanism – reduced frequency of automatic drive use
- Compliance with safety requirements – provides an evacuation exit during power outages
For Residential Complexes
- Enhanced security – controlled access without the need to fully open garage doors
- Convenience for residents – quick and easy entry/exit from parking
- Energy savings – reduced number of operating cycles for the automatic drive
- Weather protection – minimized impact of precipitation and cold air on the garage interior

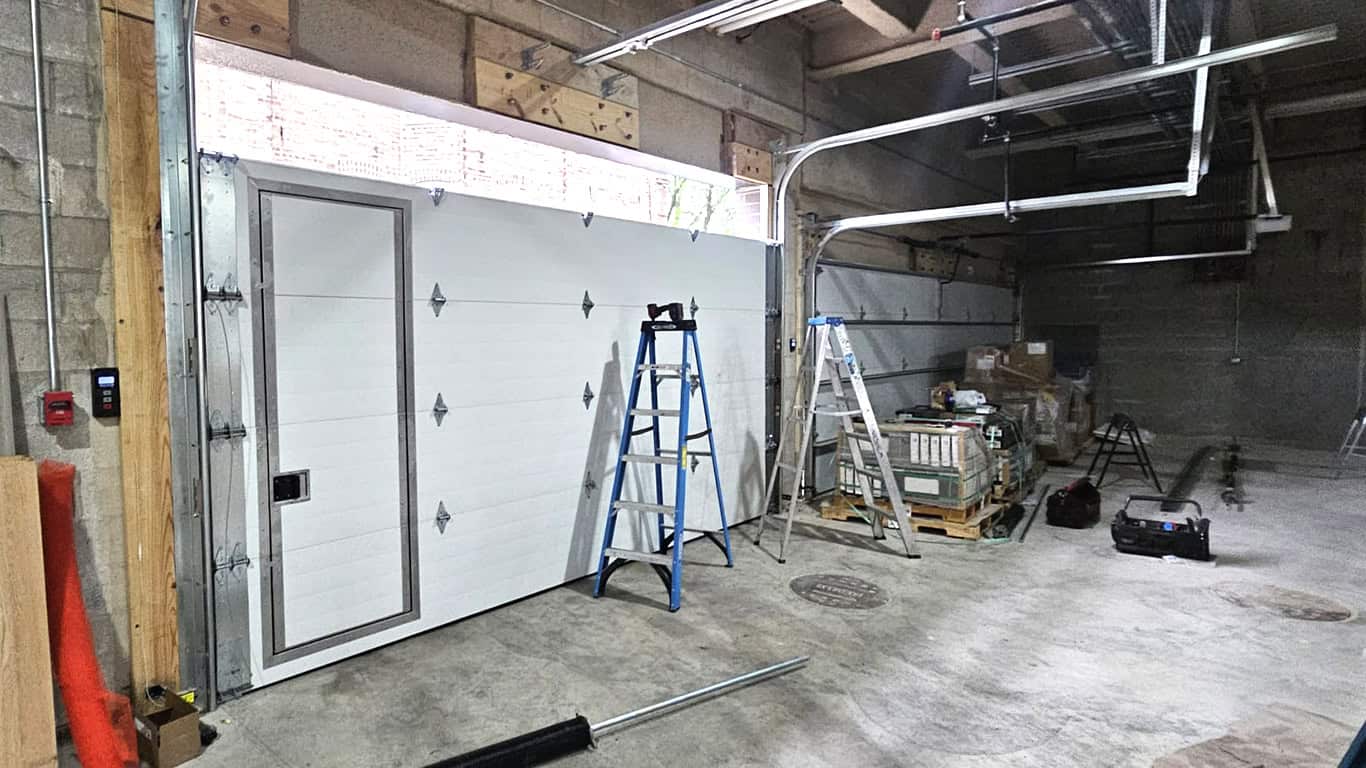

Installation Process for Specialized Doors
Installing garage doors with a built-in pass door requires high qualification and includes the following stages:
- Opening preparation – precise measurement and preparation of the metal frame
- Track installation – mounting side and top tracks considering the features of the pass door construction
- Panel installation – sequential mounting of door sections with special attention to the section with the pass door
- Special hinge installation – mounting reinforced hinges for the pass door
- Lock mechanism integration – installation and adjustment of the lock with latch
- Strut installation – mounting horizontal reinforcement elements
- Safety system connection – integrating pass door position sensors with the door control system
- Final adjustment and testing – checking the operation of all mechanisms and safety systems
Conclusion
The project to install garage doors with a built-in pass door for a multi-story residential complex in Chicago demonstrates the high level of technical expertise at Firstline Garage Door Repair. Despite difficulties finding a manufacturer capable of producing a non-standard construction and extended production timelines, our team successfully implemented a project that fully meets customer needs and city inspection requirements. Garage door repair in Chicago can be a costly undertaking, so stay vigilant and make sure to call the right company. Firstline Garage Door Repair offers a free estimate you can trust.
If you require professional installation, repair, or maintenance of commercial garage doors of any complexity, including specialized solutions with built-in pass doors, contact Firstline Garage Door Repair. Our experienced specialists are ready to offer the optimal solution for your property.
