Liftmaster Swing Gate Opener And New Gate

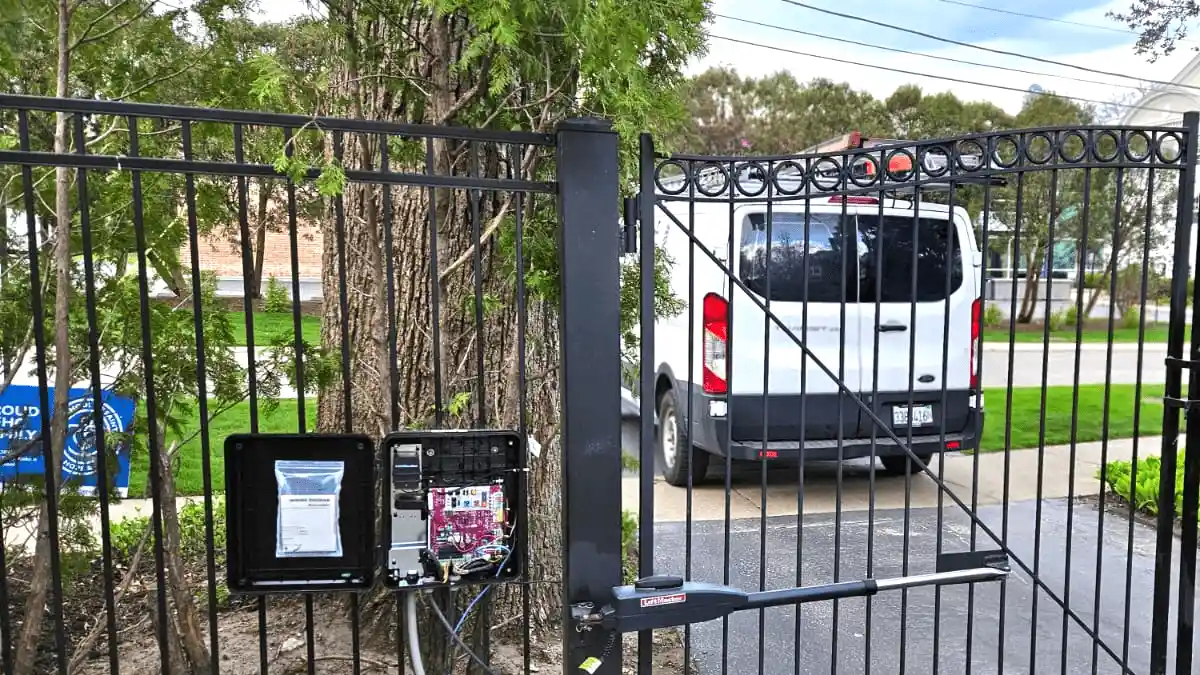

We received a job from our old customer to install a new gate with Opener. We approved the design and started installing the new gate a week later. The color chosen was black, and the opening width was 15 feet. The posts were installed, and then the new gate was installed. We used LiftMaster LA500PKGUL Dual Swing Gate Opener | LIF-LA500PKGUL-DUAL, because we trust this manufacturer and have a lot of experience with the Liftmaster brand. Everything went smoothly and works well. Commercial sensors work, which serve as a safety feature. The keypad and remote work, and we also managed to program a Wi-Fi system for the opener to fully control the gate. You can see all our commercial services here.

I will describe in a few paragraphs how the installation process went and provide some helpful tips.

Site Preparation

The installation began with a complete site survey. I inspected the openings and support frames of the gate area and decided on a double-opening gate. We also cleared obstructions and checked the landscape for any potential problems.

 Gate installation

We then mounted the new gate and also installed the opening device. This includes:

• Attaching the gate hinges to the post.
•  Make sure the gate is level and aligned.
• Checked that the gate is in working order.

Very Important : For the swing gate opener to work properly, it is important to install the gate correctly.

LiftMaster swing gate opener

The installation of the LiftMaster swing gate opener was as follows:

1. Brackets were attached to the gate post and to the gate.

2. The opener (DC motor kit with screwdriver) was mounted on the brackets and leveled.

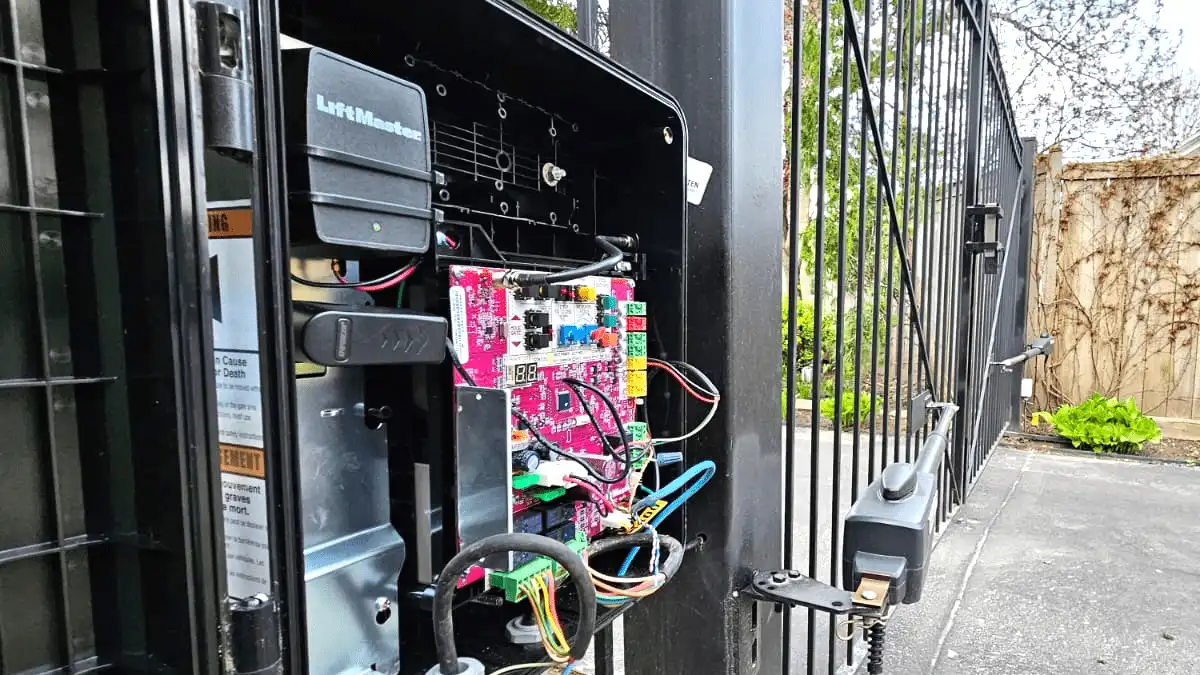

3. The control box was installed in the correct position within reach of the opener’s power cable.

Note :The control box should be positioned so as not to interfere with the gate.

 Connections and Wiring

After installation, the team continued with the wiring:

•  A waterproof connector is connected to the opener cable to the control box.
• The wires were connected to the appropriate ports in the gate motor connector on the control board.
•  The power wires were routed and connected to the control box, and the AC power was disconnected during the process. Safety First.

Very important: Always refer to the opener manual for proper wiring connections to avoid damaging the unit.

 Optional Accessories

To maximize performance, Firstline Garage Door Repair has added some additional features such as:

• Keypad for outside access.
• A photo eye to detect accidents for safety.
• Red user safety flag

Final Setup and Operation.

Installation completed:

• Defining thresholds for gate operation.
• Setting up any remote controls or keypads.
• Complete testing of gate functions and security aspects.

Tip: Make sure all security systems are installed and working before finalizing the installation.

By following these guidelines and the manufacturer’s instructions, Firstline Garage Door Repair was able to install a LiftMaster swing gate opener and a new gate for their client in Winnetka, Illinois, providing them with added security and convenience.

You can watch a short video of the gate operation with the new motor LiftMaster LA500PKGUL Upgraded Dual Swing Gate Opener Solar Kit | LA500PKGUL-DUAL at the link.
