Rolling Steel Door Barrel Replacement in Wheeling, IL (Commercial Project)

One of the rarer commercial garage door repairs in Chicago—completed in Wheeling, Illinois: replacing the barrel on a rolling steel door. Only true garage door professionals who know these systems and have deep experience take on this kind of work. Here we share unique information: a brief overview of rolling steel door barrel replacement in the city of Wheeling, Illinois.

What Happened (Client Call)

The client called: the rolling door was open and suddenly dropped closed. Fortunately, no one was hurt. We arrived the same day, secured the opening, and performed a full safety check.

Initial Diagnosis (Why the Door Dropped)

We attempted to re-balance the curtain by adding winding turns on the barrel.
There was no spring resistance in the barrel during winding, which indicates a broken internal barrel spring.
We also found insufficient curtain wrap on the barrel. The door lacked several slats (“sections”), so the lead angle between the curtain and the barrel was too low. That low angle raised stress on the attachment row and the top of the curtain each time the door closed.

Key point: Rolling doors need adequate wrap so the top slats sit correctly over the barrel at closed/near-closed positions. Proper wrap reduces stress, improves balance, and extends service life.

Proposed Solution (Approved by Client)

• Replace the complete barrel assembly (drive tube with internal spring, cones, bearings, stoppers, side brackets/headplates).

• Add six (6) additional slats to restore proper wrap and angle so the new barrel works correctly with this specific curtain.

• Inspect, repair, and re-mount the jackshaft operator (client tag: LiftMaster “J501L5”), set limits/force, and re-tension drive chain.

The client approved the estimate. We ordered  Wayne Dalton spec barrel and matching slats. Lead time was 3–4 weeks. When parts arrived, we scheduled the install.

Parts & Handling

• New barrel assembly (Wayne Dalton spec): approx. 150 lb

• Additional slats (6 pcs.) for this model: approx. ~50 lb total

• All fasteners, rivets, endlocks, and attachment hardware replaced as needed.

Step-by-Step Work Log (On-Site)

 Site Prep & Safety

1. Lockout/Tagout the operator; cordoned off the area.

2. Brought forklift/SkyJack; positioned forks under the barrel line for controlled support.

3. Secured curtain; verified guides and headplates.

Barrel Removal

4. Removed hood (cover).

5. Disconnected chain/motor drive from the barrel (sprocket/coupling).

6. Loosened and removed side brackets and through-bolts (11/16″ head; matching nuts).

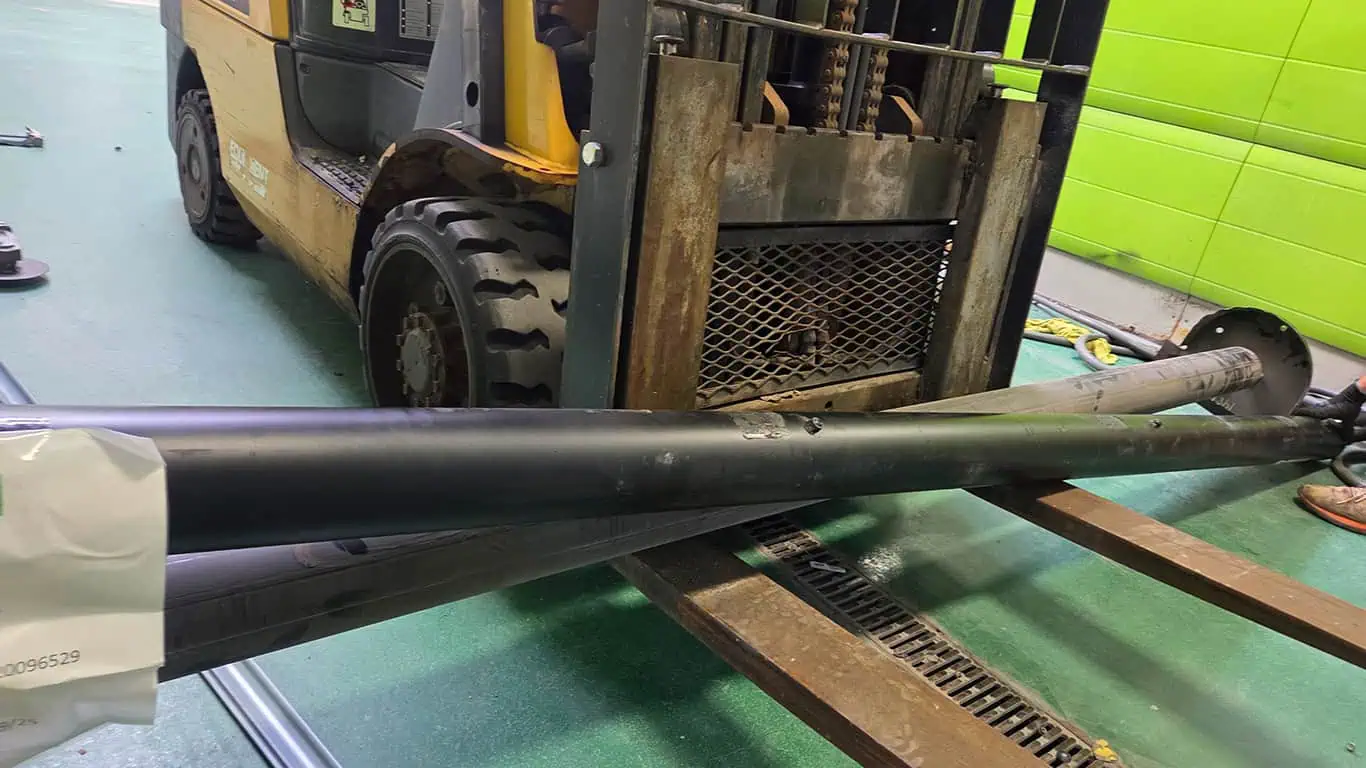

7. Lifted and supported the old barrel with the forklift, slid it clear, and lowered it safely.

New Barrel Install

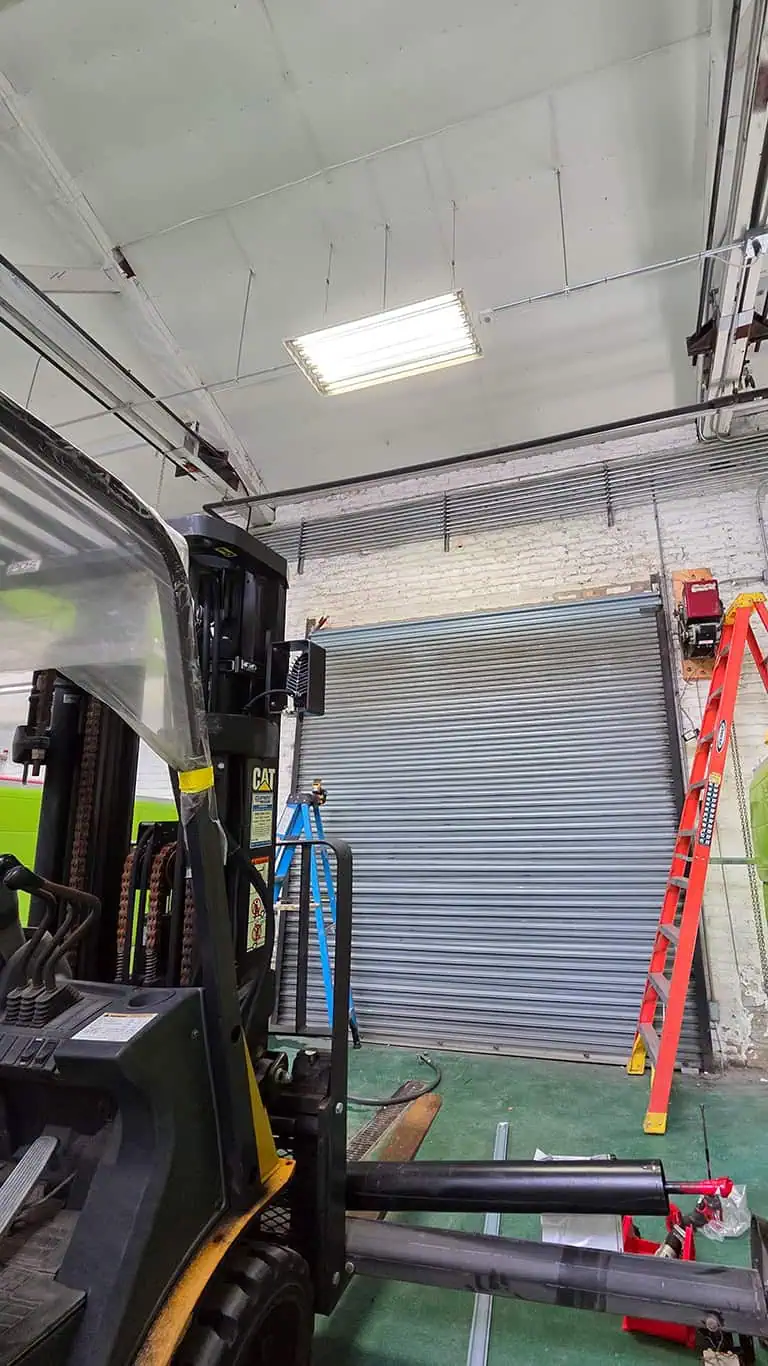

8. Brought in the new barrel (three-person carry), aligned it on forks.

9. Positioned and aligned the barrel to the headplates; set co-axial alignment between drive and idle ends.

10. Inserted bolts, snug-tightened all hardware, checked bearing seats, and torqued to spec.

 Adding Slats & Curtain Adjustments

11. Opened the side service access to insert additional slats without removing the full curtain (technique for in-place slat addition).

12. Removed one top slat from the old stack to integrate the new slats.

13. Endlocks/rivets: re-set and re-riveted where needed; ensured straight, uniform travel in guides.

14. Drilled new attachment holes in the top row and fastened the curtain to the barrel with four hex-bolts (per this model’s spec). Curtain seated flush and even.

 Spring Winding, Operator & Final Setup

15. Wound the internal barrel spring with winding bars to the calculated turns for weight/height. Verified true balance mid-travel.

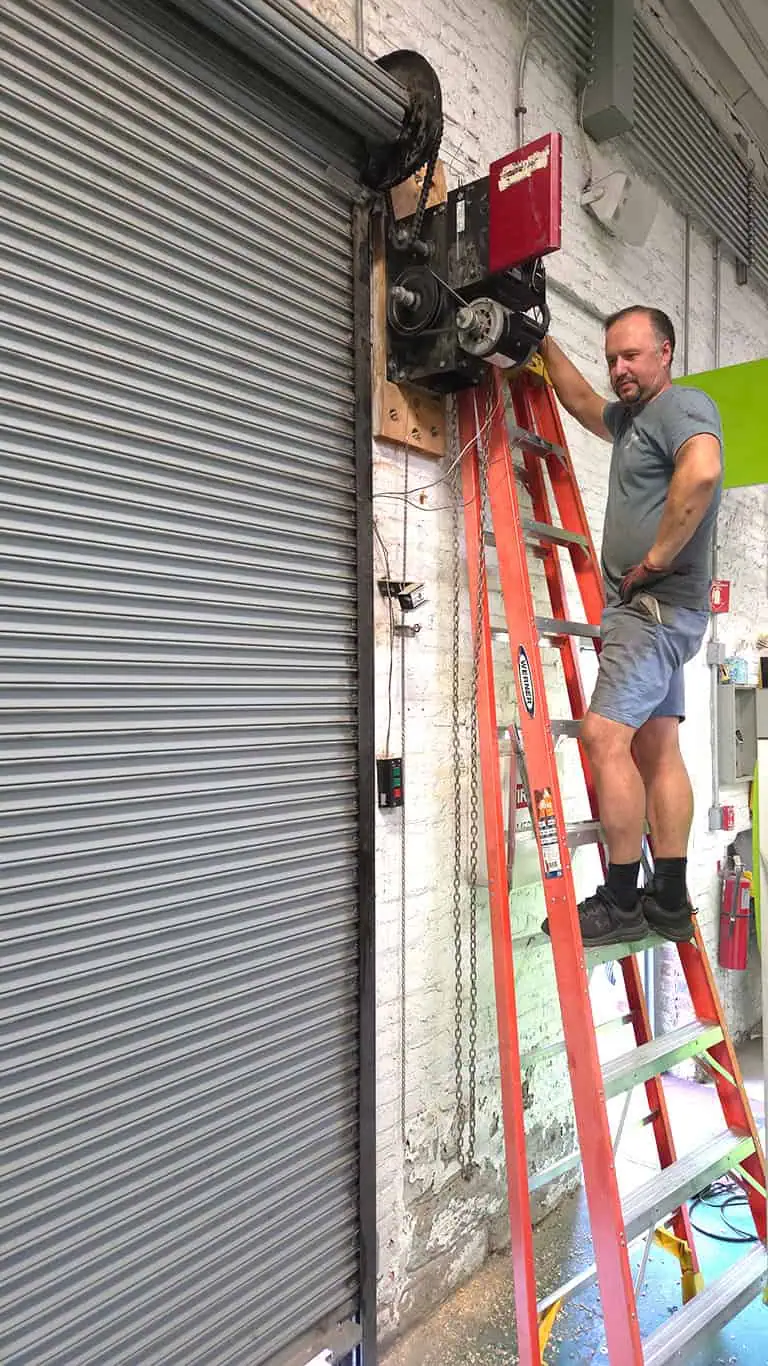

16. Re-mounted and reinforced the jackshaft operator bracket (the previous mount had pulled away). We sistered a backing board, set new anchors, and re-installed the operator.

17. Adjusted chain tension, set open/close limits and force on the operator.

18. Cycle-tested 10–15 times under load. Checked photoeyes, edge sensors (if present), vibration, and noise. The door opened and closed smoothly and safely.

Unique Tips for Rolling Door Maintenance and Installation

Why We Added Slats (Short Explanation)

• The original setup lacked curtain length.
• With too few slats, the wrap angle at the barrel is shallow, so the top attachment takes excessive stress during closing.
• After adding six slats, the curtain now sits over the barrel correctly, spreads loads evenly, and reduces fatigue on the attachment row and endlocks.

Result & Warranty

• Balance restored. Door now holds position and tracks smoothly.
• Operator bracket reinforced; limits and force set correctly.
• Noise and impact reduced thanks to correct wrap and new barrel.
• We include our written warranty on parts and labor (details per invoice).

Maintenance Notes (Owner Tips)

• Don’t strike the curtain with pallets or forklifts.
• Schedule annual maintenance: hardware checks, chain tension, safety sensors, and lubrication.
• Call if the door falls out of balance or slows — the sooner we see it, the smaller the fix.
