Are your sensors blinking a specific color? We’re here to help! We’ll explain what it means, how to fix it, and what you need to know. It means there is a problem. Each opener manufacturer has different light signals, so it’s important to understand what they mean so you can perform simple repairs on your own. You need to familiarize yourself with the regulations crucial for your sensors to work properly. You can also adjust your sensors yourself, which will help you save money on service.
One of the most challenging things about sensor troubleshooting is that every garage door manufacturer uses indicators a little differently. For example, red doesn’t necessarily mean “good,” and green doesn’t always mean something is wrong. The green light can either stay on continuously or flash on one side. In addition, the red light on the sensor may blink or be completely absent. A little yellow light indicates that the sensor is in “send mode” and working properly. Every manufacturer has their own rules, and you should always check to ensure your safety sensors are working properly. After installation, take a closer look at your sensors and remember the colors and position. Don’t ignore these rules – they are essential for proper sensor operation!
In this article, we will explain why your sensors started blinking and what the different colored lights on your garage door sensors can mean. Then, we’ll cover how to potentially fix any problems you encounter. We’ll identify some of the main causes of garage door sensor problems. We will fully research this topic. We’ll give examples of garage door system manufacturers, explain how they work, and why they are essential to your safety and your family’s safety. We will also share our experience with sensor repair. We will detail the unique situations that arise with various motors, especially LiftMaster and Chamberlain, Marantec, and Genie.
Table of Contents
First: How do garage door sensors work?
Garage door sensor lights are an integral part of your garage door’s functioning, even though you probably don’t pay them much attention. On most garage doors, the safety sensors are mounted on either side of the wall, a few inches from the foot of the door. The sensors are located at the bottom and are attached to special brackets. These brackets can be mounted either on the track or behind the track on the base, securing them to the leading garage door frame.
They work by transforming electricity into an infrared beam, which creates a tripwire that’s invisible to the naked eye. One side is known as the transmitting photo eye (or unit), and the other is known as the receiving eye (or unit).
The sensors work in tandem with garage door openers. If the safety beams detect a broken wire, perhaps by a child, pet, or stationary obstruction, the door automatically stops closing and reverses its direction. This is a crucial safety measure for garage doors and helps keep your family and pets safe. Sensors often help prevent issues with personal vehicles hitting the garage doors.
The photo eye sensors must be clean and unobstructed for your garage door safety sensors to work as they should. Sensor lenses should be cleaned regularly, as the beam passing through them goes through these lenses. They must also be properly aligned, which is an important job for the installation team. You also need to be careful not to accidentally bash the sensors, as this can cause them to lose their alignment.
The photo-eye system is central to the way the sensors operate. However, each unit also has garage door sensor lights of various colors, which indicate something specific. Keep reading to find out what the different lights mean and when to seek professional help if the sensors malfunction.

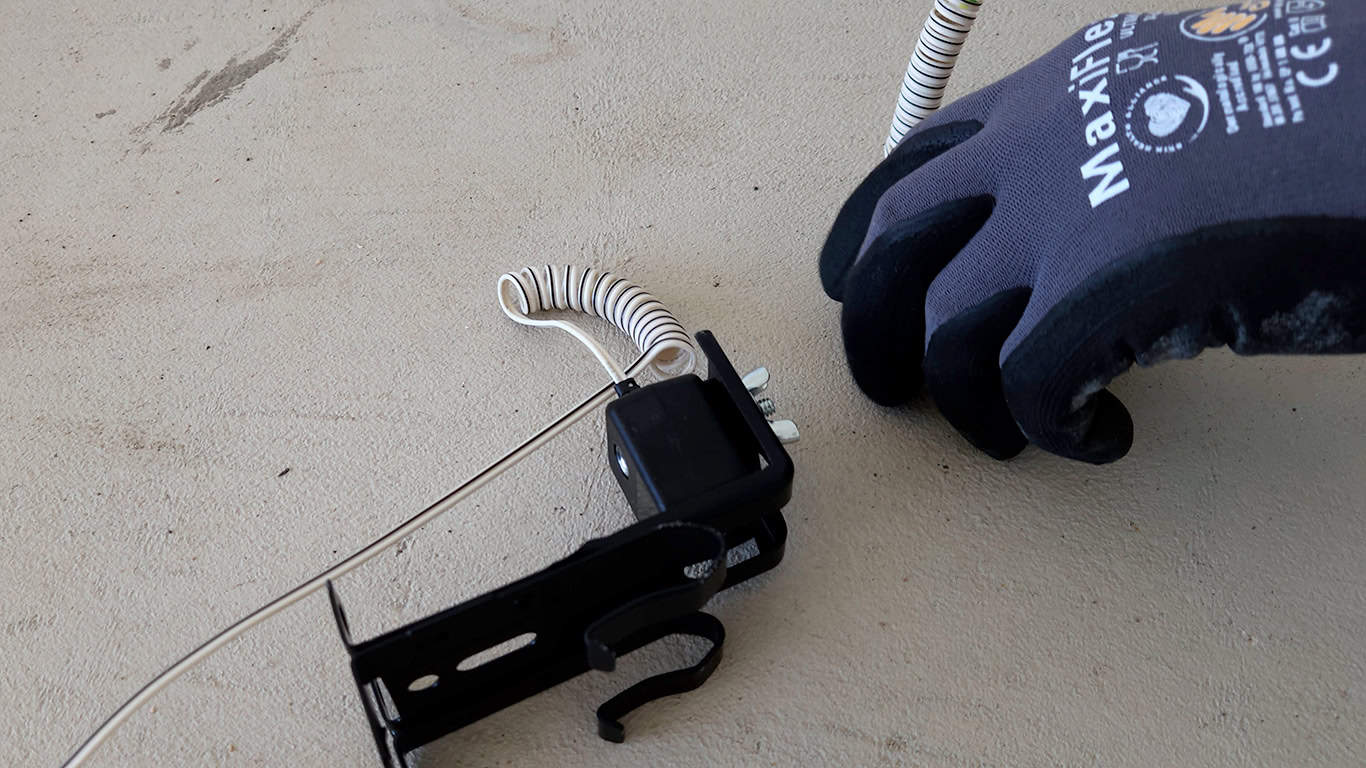

Steps to Align Sensor Brackets for Garage Doors:
- Turn Off Power
To avoid unintended garage door opener activation, disconnect its power source.
2.Inspect Brackets
Verify that the brackets supporting the sensors are stable and secure. Secure all loose screws by tightening them properly to ensure they remain attached to the track or base. Brackets may face the wrong direction after a physical impact, become broken, or may not be securely tightened to the track.
3.Loosen Sensor Screws
Adjust the sensors by partially unscrewing their holding screws without completely removing them as part of the calibration process. After loosening the sensor, align it so that it is level with the base of the bracket. Repeat this process on both sides.
4.Set the Correct Height
Right place for the sensors:
- Sensors must be mounted no higher than 6 inches from the floor. This is a legal requirement, and inspectors responsible for this will verify and hold you accountable if it’s not compliant.
- We strictly adhere to this rule in new construction to ensure the proper functioning of the sensors.
- We maintain a distance of 4 to 6 inches from the floor, no more.
- Align the Sensors
Turn On Power
Move both sensor lenses to face one another directly. Most sensors have indicator lights:
– A solid green light indicates a stable and properly aligned sensor connection without interruptions: Proper alignment.
– Flashing or No Light: Misaligned sensors.
- Test the Beam
Use an object to block the beam. The beam activation will be confirmed when the indicator light turns off or starts flashing.
- Secure the Sensors
Position the brackets securely by tightening screws after sensor alignment without altering sensor placement.
- Check for Stability
The brackets and sensors should be securely positioned to prevent movement while operating the door.
- Power On and Test
Operate the power system and conduct a sensor test by closing the door and placing an object across the beam pathway for functionality confirmation.
- Routine Maintenance
Conduct regular checks on sensor alignment and maintain performance levels by keeping sensor lenses clean.
The different colors of garage door sensor lights
There are three main colored lights to be aware of:
- Red light
- Green light
- Orange light (may also be yellow)
You should be mindful that different manufacturers use lights in different ways, and there’s no uniformity in the design process. These lights serve as visual cues, so we always recommend reading your user manual or owner’s manual to ascertain precisely what the lights mean on your garage door sensors.
Let’s take a look at what these lights typically mean.
Red light
Though you might automatically assume that a red light on your sensors is a bad thing, it’s actually a sign that things are working as they should in most cases. A solid red light on Genie and Guardian models indicates that the sensor is functioning properly. For instance, if you have a Genie or Guardian garage door, both or one of the eyes should be red, respectively. Marantec garage doors also use a red light for its receiver lens. Newer Genie models use two red lights for the sensors, while older models use one red and one green light.
Green light
If you have a LiftMaster, Chamberlain, or Craftsman garage door, the receiving eye should always be green. As we explain below, the other side should display a yellow light that is also constantly on. If the light is on one side and not on the other, it might be an alignment issue. We look at some of the most common causes and fixes in one of the later sections.
Special attention is needed for LiftMaster, Chamberlain, and Craftsman openers, as their newer models and latest sensor generations can be difficult to calibrate and often cause issues during setup. These sensors may require extra adjustments and troubleshooting to ensure proper alignment and functionality.
During the installation of these openers, our technicians carefully inspect the sensors and conduct specialized tests specifically for these manufacturers to ensure proper alignment and functionality.
Orange or yellow light
Not all garage door manufacturers use orange/amber lights, but LiftMaster, Chamberlain, and Craftsman doors do. Orange lights typically signal low power or a weak connection, and may appear on older models or specific brands. The transmitting photo eye on these doors is yellow and should remain on at all times. In these garage door models, the yellow light indicates that the garage door sensors are correctly doing their job, sending an infrared beam across the garage.
What about a flashing light?
As you can see, most sensor lights on garage door openers should remain on consistently, showing that the door is operational. But what if your garage door sensor light is flashing or blinking? Here are some potential causes: If the red light blinks, it typically indicates issues such as misalignment or obstructions that prevent the sensors from connecting properly.
Alignment issue
If the sensor light is flashing on and off, it could be that the transmitting eye is not properly lined up with the receiving eye. This might be a result of a poor job at installation, or if you have had your garage door for some time, accidental damage could have caused the misalignment. Naturally, if the sensors are misaligned, you will need to adjust and realign them to ensure the infrared beam is both transmitted and received correctly. We have outlined how to solve this problem in 10 steps above in the text.
Dirty lenses
Another potential cause of flashing sensor lights is a dirty lens on either side. This can make it impossible for the receiving eye to pick up the beam correctly. Over time, dirt, dust, and debris can build up and cause the lenses to become dirty, and cleaning them is typically straightforward. Take a soft cloth and wipe them clean. Depending on how dirty the sensors are, you might also use some household cleaning products to help you.
Professional opinion:
In my extensive experience, the most common issues are:
- dry leaves in the fall covering the sensors,
- spider webs interfering with the beam,
- garage items accidentally placed in the sensor’s path.
These obstructions often cause false detections and prevent the door from closing correctly.
Faulty or damaged wiring
The connection of the wires makes a huge difference in the way your garage door sensors operate. Pests might have caused wiring issues, while the weather may also affect the wiring. The first thing to do is perform a visual check of the wires to see if you can identify any issues. If you notice frayed or broken power wires, you will need to call a professional to help you replace and fix them
Professional opinion:
Wiring issues are rare but can happen:
- After Painting – Wires may be damaged, causing sensors to lose contact.
- Opener Replacement – Old wires are often reused, and connections with tape or caps can corrode over time.
- Internal Wiring – Contacts inside the opener can break and need inspection.
Regular checks ensure proper function and safety.
What about no sensor lights?
You might also look at your garage door sensors and notice no lights at all. What does this mean? Well, one of the most common causes of this is a power supply issue. There might be a temporary power outage in your area, or a fuse might have tripped, causing the power to go off in your home. In this case, you won’t be able to use your remote or the wall button either. This rule does not apply if your opener is equipped with a backup battery, as it will continue to operate even during a power outage.
Another issue could be a bad logic board, which occurs when the opener no longer recognizes its internal programming. As such, it doesn’t send the necessary signal to open or close your door. If the logic board is bad, you will need to replace it.
Though fairly obvious, make sure there’s nothing blocking your garage door sensors. Check that a family member hasn’t accidentally placed a big box or any other item in front of either sensor, as this will prevent them from working as they should.
How Sunlight Interferes with Garage Door Sensors (and How to Fix It!)
Direct sunlight hitting the sensors can significantly impact their proper functioning. Bright sunlight can overwhelm the lens and disrupt the signal, leading to sensor malfunctions. When closing the garage door, sunlight interference may cause the sensors to misinterpret signals, stopping the door and reversing it back up.
Solutions to Prevent Sunlight Interference:
- Sensor Shield Photo Eye Bracket. Brands like Marantec and Genie offer special brackets that allow you to mount the sensors on a shaded wall instead of directly on the track.
- Adjust Sensor Position – If possible, reposition the sensors vertically or slightly inward to reduce direct exposure to sunlight.
- Install a Physical Sun Blocker – Adding a small cover or shade over the sensor can help block excess sunlight while maintaining a clear signal path.
Proper adjustment and placement of garage door sensors ensure reliable operation, preventing unnecessary interruptions caused by sunlight.
Track Misalignment & Sensor Problems: What You Need to Know
When vertical tracks are incorrectly installed, the garage door may shift closer to the track when closing, causing vibrations that affect the sensors. This can lead to:
- Misaligned sensors, preventing the door from closing properly
- Door reversing unexpectedly, mistaking vibrations for an obstruction
- Intermittent sensor failures, leading to inconsistent operation
Solution:
Ensure that the garage door tracks are correctly positioned and that the door does not press against them when closing. If you notice misalignment or vibrations affecting the sensors, give us a call! 📞 Our technicians will adjust and align your tracks along with the sensors for smooth and safe operation
What do you do if you have faulty garage door sensors?
Garage door sensors are crucial because they prevent accidents and property damage. If your sensors don’t work as they should, your garage door will have no way of telling if there is an obstruction in its path. Therefore, it won’t stop and can cause potential damage to your vehicle or anything that accidentally gets in its way.
So, if you notice flashing lights or are concerned that a different colored light is now showing on your sensors, you need to do something about it, the same way you would identify any other problems with your door, be it a damaged panel or a faulty motor head.
Your first port of call should be the garage door manual, which clearly explains which colored lights you should see when your sensors are operational. You will also find that most manuals explain what to do if the lights are flashing.
After reading the manual, most people should be able to identify the problem with their garage door sensors or lights. Whether you can fix it or not depends on your level of confidence and whether you’re sure you have identified the correct problem.
If you have any doubts, you can call one of our experts. We specialize in garage door sensor repair across Illinois. Also, feel free to call us and explain which garage door model you have and which lights appear. Our technicians will then be able to advise you on what the problem is likely to be before visiting your home. When my clients call, I often sense they have safety sensor issues. I clearly explain how to fix the problem; amazingly, about 75% of people manage to resolve it themselves. We’re always happy to help!
How much does it cost to replace a garage door sensor?
If you’ve gone through all the steps and still can’t align your sensors, you have two options:
1. Buy and Replace Sensors Yourself.
- Compatible brands: Genie, LiftMaster, Chamberlain, Craftsman
- Available at Home Depot
- Ensure you purchase the correct model for your opener
2. Call a Professional Technician.
Includes:
- New sensors
- Professional installation
- Full setup and testing
If you’re unsure about the replacement process, hiring a technician ensures a hassle-free and properly aligned installation.
Final words
Understanding what the color of your garage door sensors means is the first step toward identifying a problem. After all, you must acknowledge the difference between a flashing green light and a constant orange light.
Still, you must also be aware that every manufacturer uses lights on sensors differently.
Your home security is crucial, so don’t take chances with your garage door sensors.
If you notice any damage or issues related to the way the lights and sensors usually operate, call us at 847-620-9249. Our friendly technicians will gladly advise you on the problem and offer potential solutions.
We respond to all call-outs in a timely and professional manner. We serve customers throughout Chicago, Arlington Heights and all Illinois and will be on the ground quickly to fix your sensor issues.
2026 Update: Try Our Free Safety Sensor Troubleshooter
According to Firstline Garage Door Repair’s 2026 service data, 20–22% of all garage door service calls are directly related to safety sensor problems — misalignment, blinking lights, dirty lenses, or wiring issues. That’s roughly one out of every five calls we receive. The good news? Many of these issues can be diagnosed and resolved by homeowners without a technician visit.
That’s exactly why we built our Safety Sensor Troubleshooter — a free, interactive diagnostic tool designed to walk you through your specific sensor problem step by step. In just a few clicks, you’ll get a clear diagnosis, the estimated DIY difficulty level, approximate repair cost, and actionable instructions to fix the issue yourself.
Whether your sensor LED is blinking, your garage door reverses immediately after hitting the close button, or both sensor lights are completely off, this tool covers it all. It was built from real field experience — the same troubleshooting logic our technicians use on every service call across Chicago, Arlington Heights, and the surrounding Illinois suburbs.
FAQ
What does a blinking garage door sensor mean?
In most cases, if a garage door sensor blinks, it probably means that there’s an alignment issue that needs to be fixed. However, it might also mean that the lenses are dirty or dusty, which affects the way the beam is cast from one side to the other. Begin by cleaning the lens first before calling a technician to realign your garage door.
Should my garage door sensors be illuminated?
In most brands of garage doors, the safety sensors should remain illuminated at all times. If they go off, it’s probably due to a power supply issue. Also, if the lights start blinking or flashing, it’s probably because of an alignment problem or due to dirty lenses. In other words, if the lights on your garage door sensors are constantly on, it’s a sign that they’re working as they should.
In many openers, the sensors may automatically turn off. To activate them, you simply need to open the garage door.
How to test garage door sensors?
You can manually test if your sensors are working by placing a box in between them. Make sure it disrupts the line between the two sensors, and then operate the door opener. If the sensors are working, it should automatically detect that the box is in the way, reversing back to its starting position. For your safety, don’t get in the way of the sensors yourself in case they are faulty.
Many openers, such as LiftMaster, Chamberlain, and Craftsman, will provide a visual signal indicating that the door will not close.
Should both lights on the garage door sensors be green?
This depends on the type of garage door that you have, as every manufacturer uses lights differently. We advise you to check your user manual to see which color the sensors should be. You can also call us directly if you think you have an issue with your garage door sensor lights.
Why is one of my garage door sensors green and one yellow?
This indicates that your opener is one of the three brands: LiftMaster, Chamberlain, or Craftsman, and everything is functioning correctly. A constant yellow light signifies proper power, while a steady green light shows that the sensors are aligned and working correctly.
Can you replace garage door sensors with any brand?
Interchangeable Sensors:
- LiftMaster & Chamberlain (Old & New Models) – Can be used together
- Craftsman & LiftMaster – Compatible
- Craftsman & Chamberlain – Compatible
❌ Not Compatible:
- Genie & LiftMaster – Cannot be used together
- Genie & Chamberlain – Cannot be used together
Important Tip:
When replacing sensors, always confirm compatibility with your specific opener brand to ensure proper functionality and avoid issues.
Why won't my garage door sensor stay green?
This indicates that you have an issue. You should revisit our article to identify the cause. If you’re unable to resolve it, don’t hesitate to call us for assistance.
Will a garage door open without sensors?
Yes, you can open your garage door even if there is a problem with the sensors, but you won’t be able to close it unless you override the system manually.
Do door sensors work without wifi?
The Wi-Fi system in an opener and the safety sensors are completely independent of each other. So, even if your motor is not connected to Wi-Fi, your sensors will always function properly without any issues.
Will a garage door work without sensors?
Without sensors, your garage door will not function properly. You can only open it using a remote or keypad, but to close it, you must press and hold the wall button while monitoring the door until it fully shuts.
Closing the garage door with a remote or vehicle’s built-in system won’t work without sensors. All modern openers are equipped with safety systems, and sensors are one of the most crucial components for safe operation.
Written by Alex Caraus.
I am very happy to share my great experience with you. I hope my articles helped you solve your problem yourself. If you have any additional questions, please write them down. I personally read and review every email. Write, and I will help you for free.
I wish you good luck with your garage door repair!!!
